Highlights
CPU: RK3228A, 28nm Quad core Cortex A7, High cost performance 4K
HDMI: Support 4K 10-bit H.265/H.264/VP9 video playback and display
HDMI: Including an HDMI 2.0 for HDMI 2.0 for 4K YUV420@30Hz
Wired network: Ethernet GMAC 10/100M Ethernet controller
Wired network: Support 10/100Mbps data transfer rate and RGMII interface
Specification
OS:Android 9.0
GPU:ARM Mali-400 GPU
Memory:1GB/2GB DDR3
Flash:8GB/16GB Emmc (up to 32GB)
WiFi:802.11 a/b/g/n 2.4G/5G
BT:BT4.0
Details

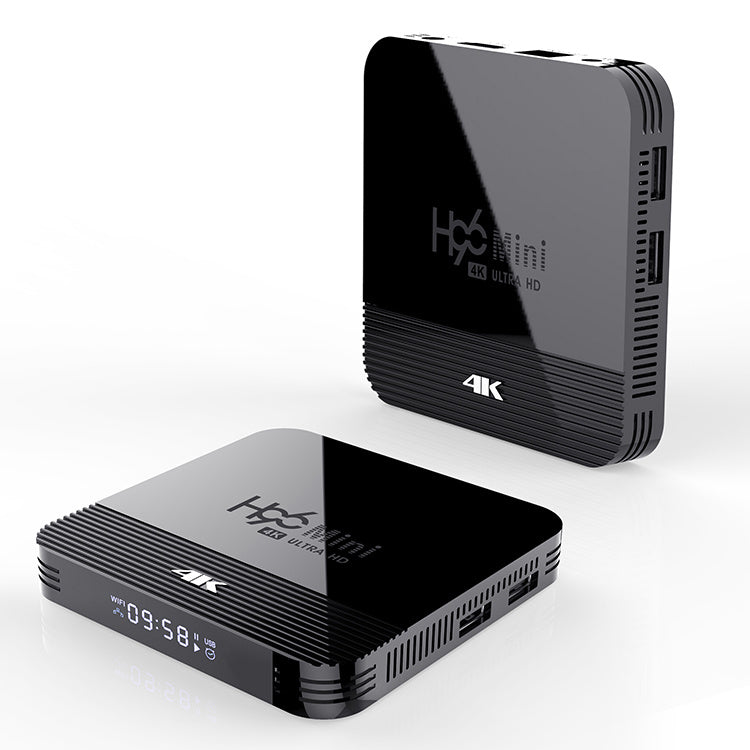

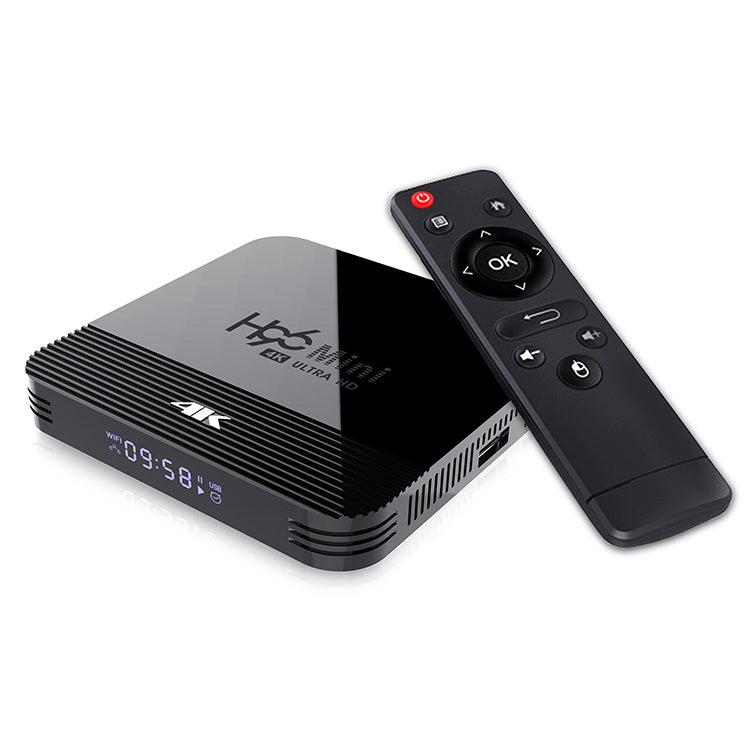

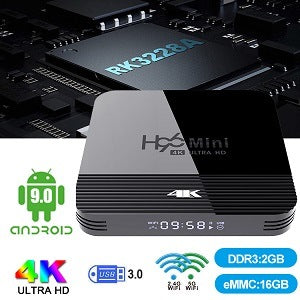

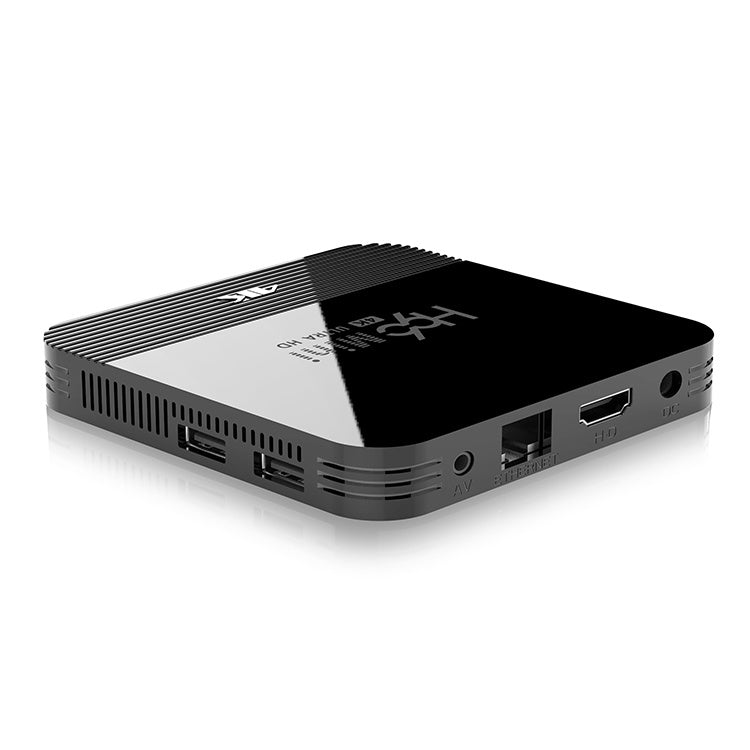

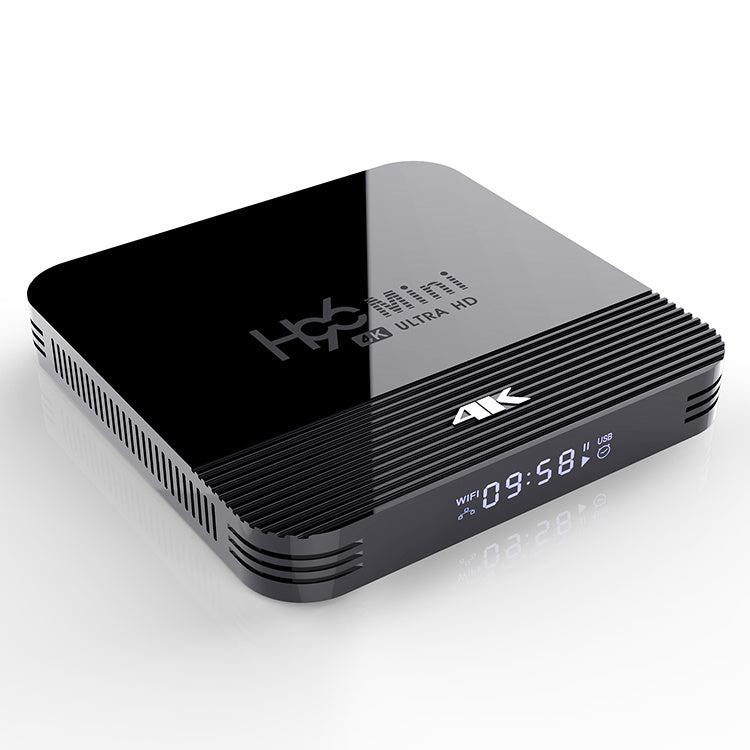

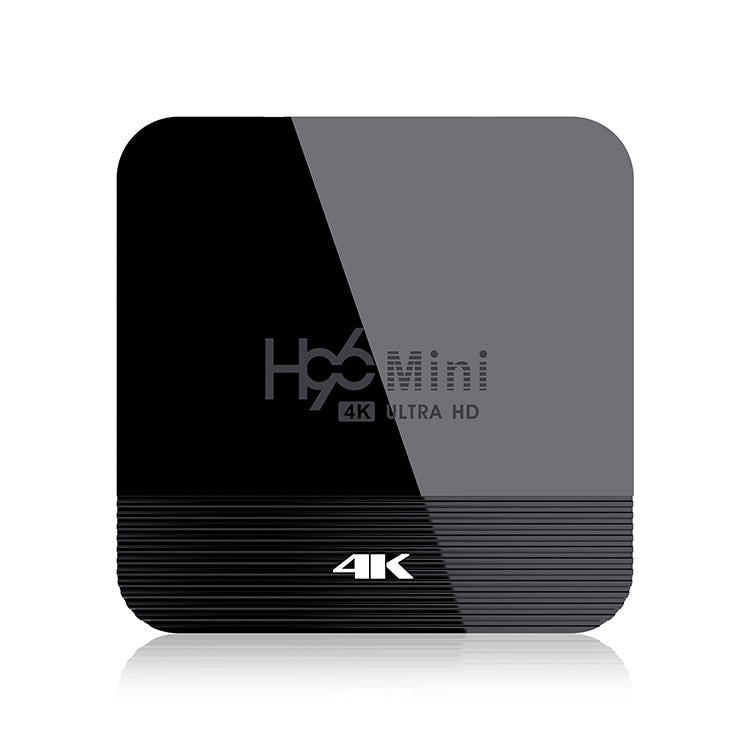

H96 mini H8 Android TV Box RK3228A Quad core 2+16 1+8GB Android 9.0
Dual Wifi 2.4G+5G Smart TV Box
Model No. | H96 MINI H8 | |
Hardware | ||
CPU | RK3228A, 28nm Quad core Cortex A7, High cost performance 4K OTT Box solution | |
GPU | ARM Mali-400 GPU | |
HDMI | Including an HDMI 2.0 for HDMI 2.0 for 4K YUV420@30Hz with HDCP 1.4/2.2 | |
Support 4K 10-bit H.265/H.264/VP9 video playback and display | ||
Memory | 1GB/2GB DDR3 | |
Flash | 8GB/16GB Emmc (up to 32GB) | |
WiFi | 802.11 a/b/g/n 2.4G/5G | |
BT | BT4.0 | |
USB HOST | 2*USB2.0 | |
Wired network | Ethernet GMAC 10/100M Ethernet controller | |
Support 10/100Mbps data transfer rate and RGMII interface | ||
IR | Infra Remote control | |
Power Supply | DC input 5V/2A | |
Software | ||
OS | Android 9.0 | |
3D | Hardward 3D graphics acceleration | |
Video decoding | 4K VP9 Video decoder, 4K 10-bits H.265/H.264 video decoder | |
1080P other video decoders (VC-1, MPEG-1/2/4, VP6/8) | ||
Support conversion from BT.2020 to Rec.709/Rec.601 | ||
Video post processor: de-interlace | ||
Support H.263/H.264 2160P@ 24fps | ||
Support VC-1 ,MPEG - 1 1080p @ 60fps | ||
Support MPEG- 2 2160P @ 24fps | ||
Support MPEG-4 1080P @ 60fps | ||
Support AVS 1080p @ 60fps | ||
Support MVC 2160P @ 24fps | ||
Support WMV,3GP,MKV,ASF,3G2M4V,MJPEG,RV8,RV9,RV10 1080P@60fps | ||
Support HEVC decoder | ||
Support Main/Main10 HEVC/H.265 decoder, 4K @ 60FPS | ||
Support 4096x2304 resolution | ||
Support HDMI 720P-2160P FUII 3D HD( 2160P, 3840 * 2160 ), 4K+2 K | ||
Support flash11.1 | ||
Video Decoder format | H.264,H.265,VP8,MVC(1080P) | |
Video format | Supports DIVD/DIVX/REAL8 / 9 / 10, RV, RM, RMVB, PMP, FLV, MP4, M4V, VOB, VP6, VP8 2160P @ 24fps | |
Audio format | Supports MP1, MP2, MP3, WMA, OGG, AAC, M4A , FLAC, APE, AMR, RA, WAV, etc | |
Picture format | Supports JPG, JPEG, BMP, GIF, PNG, JFIF etc Resolution 8192x8192 | |
HDD file system | FAT16 / FAT32 / NTFS | |
Support Subtitle | SRT, SMI, SUB, SSA, IDX+USB | |
XBMC | Support | |
DRM | Support Widewine Level1, DRM PlayReady ,Verimatrix, built in Trustzone, | |
HDCP 2.2/1.4 | ||
Support language | Chinese, English, Germany, Japanese, Korea etc. multilateral languages | |
Appliactions | ||
Online | Browse all video websites, support Netflix, Hulu, Flixster, youtube etc | |
Apps | Apps download freely form android market, amazon appstore etc | |
Medium | Local Media playback, support HDD, U disck ,SD card | |
Talk online | Support SKYPE video call, MSN, facebook, twitter, QQ etc | |
Others | Support WiFi hotpiont, could be as a wireless router | |
Support DLNA, Google TV Remote, LAN, 3D Moive, Email, office suit etc |
